Architecture Map

What It Reveals

The Architecture Map shows you the truth about your code structure.

Developers often believe their architecture follows a certain pattern: "We have clean layers," "Our domain is isolated," "We follow hexagonal architecture." But code tells a different story.

The Architecture Map doesn't lie. It reveals:

  • The real dependencies, not the intended ones
  • Hidden coupling between modules you thought were independent
  • Circular dependencies that make refactoring painful
  • Layer violations where low-level code depends on high-level code

Architecture Map

What to Look For

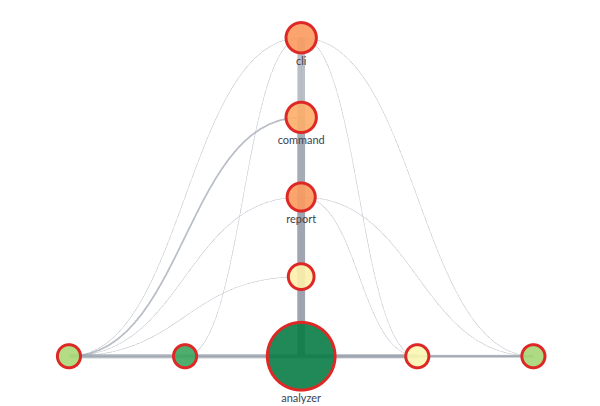

Vertical Strata: If your application is well-layered, you'll see clear vertical levels. High-level components (controllers, UI) at the top, low-level utilities at the bottom.

Flat Horizontal Graph: Everything at the same level means your code lacks proper separation of concerns. No clear boundaries between layers.

Cycles: Circular dependencies appear as loops. These create rigid, hard-to-test code.

[!TIP] If you think you have a layered architecture but the map shows a flat horizontal line, your code is not as decoupled as you think. The graph doesn't lie.

How It Works

1. Community Detection

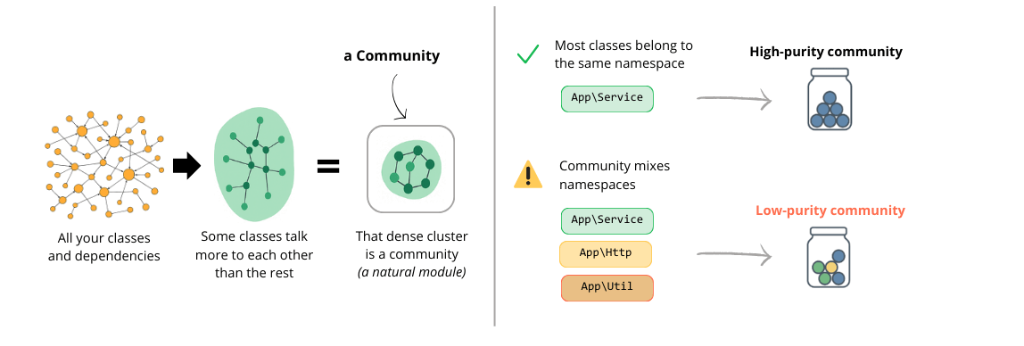

Instead of showing thousands of individual classes, AST Metrics groups them into Communities using the Louvain Algorithm.

A Community is a cluster of classes that interact more with each other than with the rest of the system.

Community Detection

2. Dependency Layering

Once communities are identified, the graph arranges them based on Dependency Degree:

  • Top Layers: High-level components (Controllers, Presentation). They depend on many things but are rarely depended upon.
  • Bottom Layers: Low-level components (Utilities, Core Domain, Infrastructure). Used by everyone but depend on few.

The vertical position is purely mathematical, based on how many dependencies point to vs from each component.
